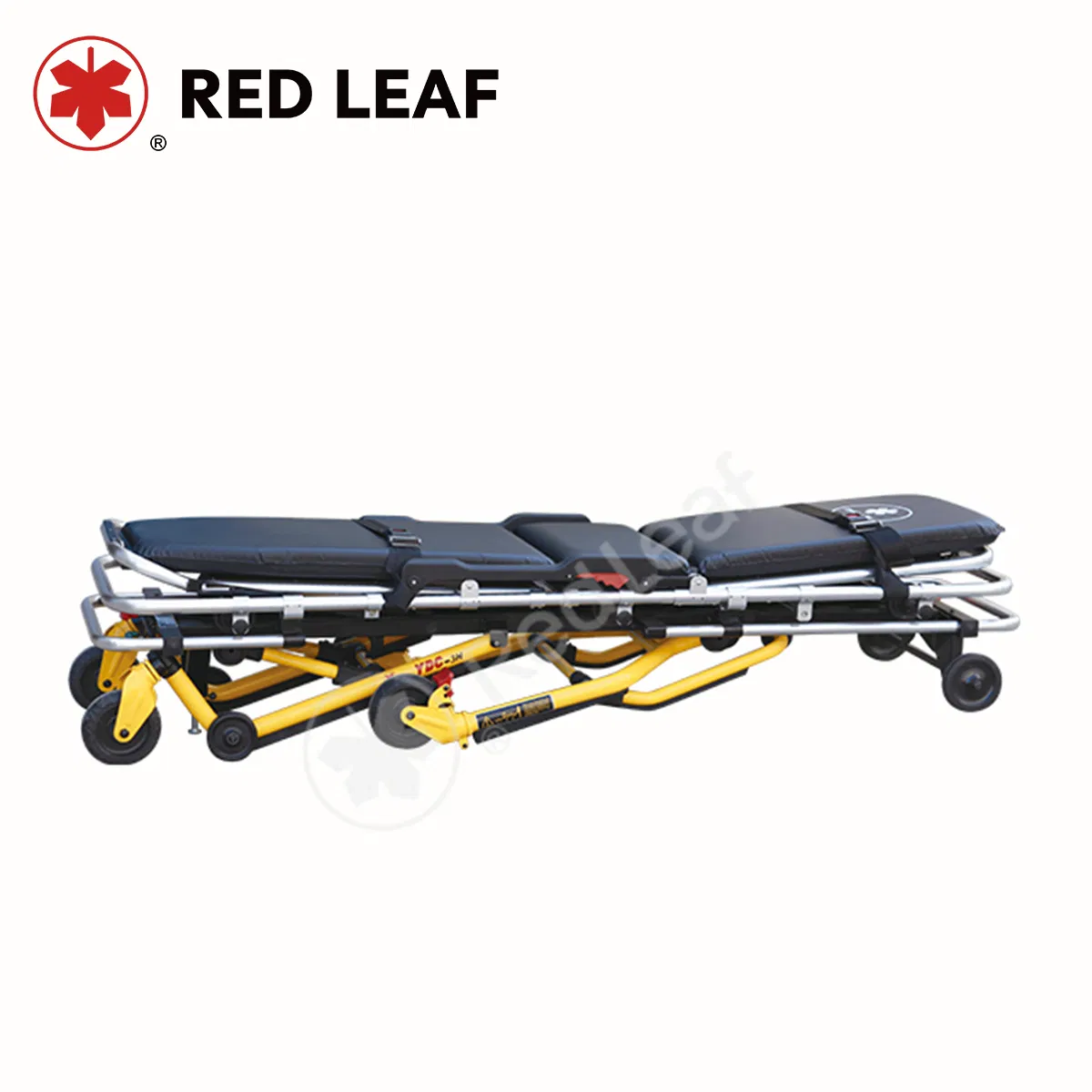

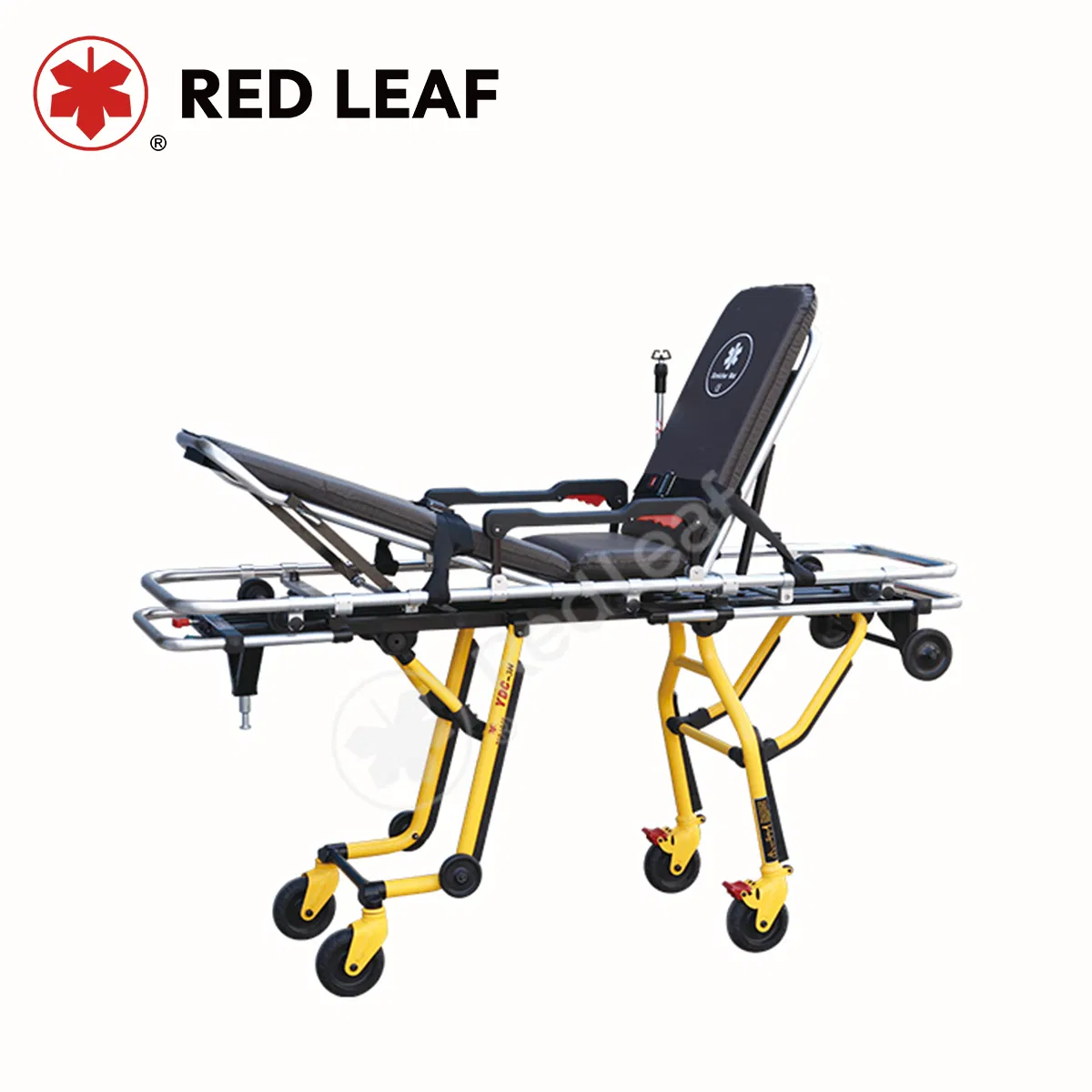

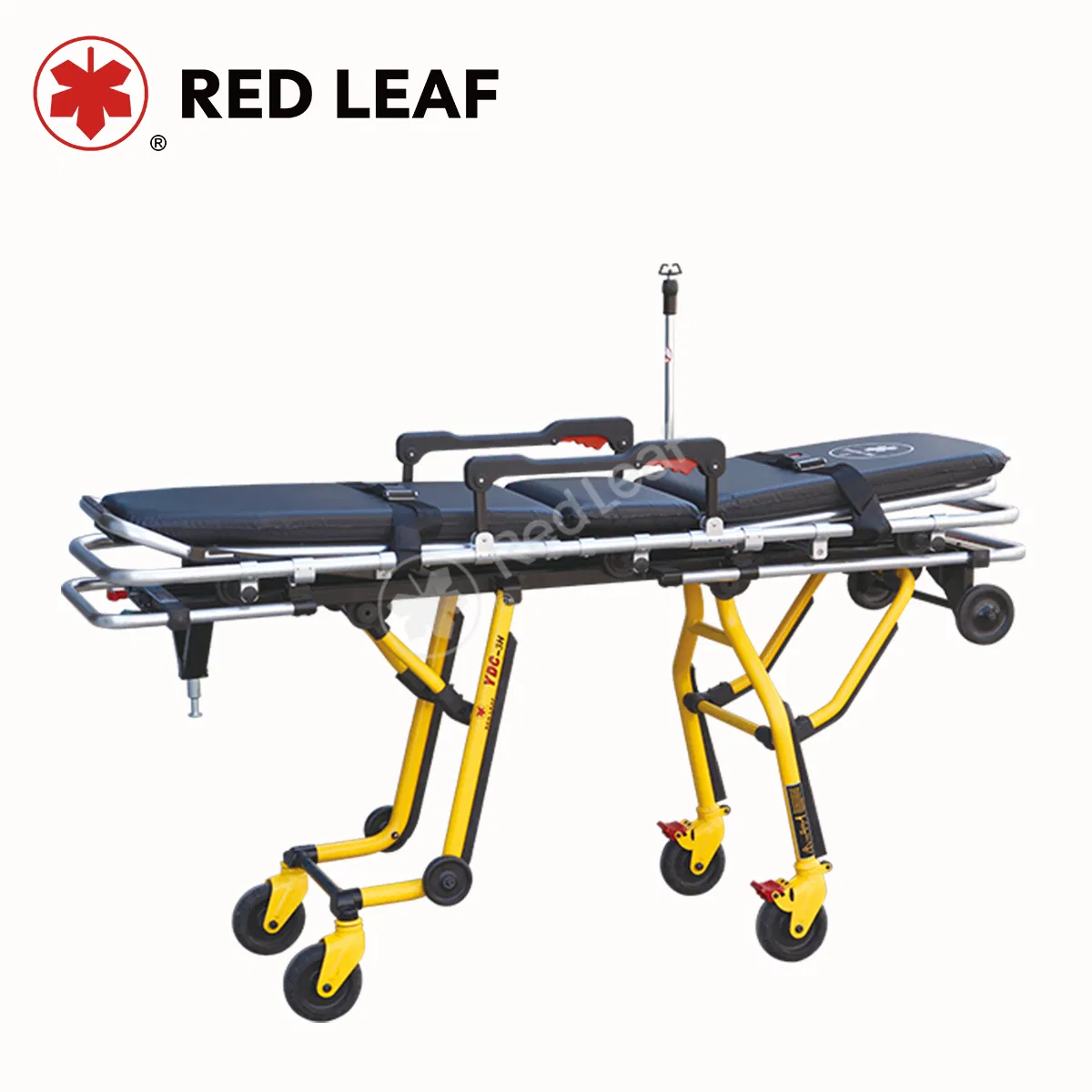

Detachable Upper Frame Best Price Emergency Stretcher for Ambulance Car
Detachable Upper Frame Best Price Emergency Stretcher for Ambulance Car
Detachable Upper Frame Best Price Emergency Stretcher for Ambulance Car
Detachable Upper Frame Best Price Emergency Stretcher for Ambulance Car
1 / 4
Detachable Upper Frame Best Price Emergency Stretcher for Ambulance Car
Detachable Upper Frame Best Price Emergency Stretcher for Ambulance Car
Detachable Upper Frame Best Price Emergency Stretcher for Ambulance Car
Detachable Upper Frame Best Price Emergency Stretcher for Ambulance Car

Detachable Upper Frame Best Price Emergency Stretcher for Ambulance Car

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

i

Basic Specifications

Model No.
YDC-3H
Certification
ISO, FDA, CE
Material
Aluminum Alloy
Load Bearing
181kg
Self-Weight
45kg
High Position
193*56*90cm
Low Position
193*56*31cm
Loading Height
62cm
Back Max Angle
65°
Wheel Size
150mm
★

Product Description

Emergency Stretcher Overview
  • The main material is high-strength aluminum alloy for durability and lightweight handling.
  • The whole height can be adjusted in more than 4 positions for the convenience of CPR, while the front and back parts can be adjusted in 6 positions.
  • Leg folding mechanism and height adjustment are controlled through intuitive front and rear pull rod operations.
  • Equipped with an adjustable two-stage I.V. Stand with a maximum length of 75cm.

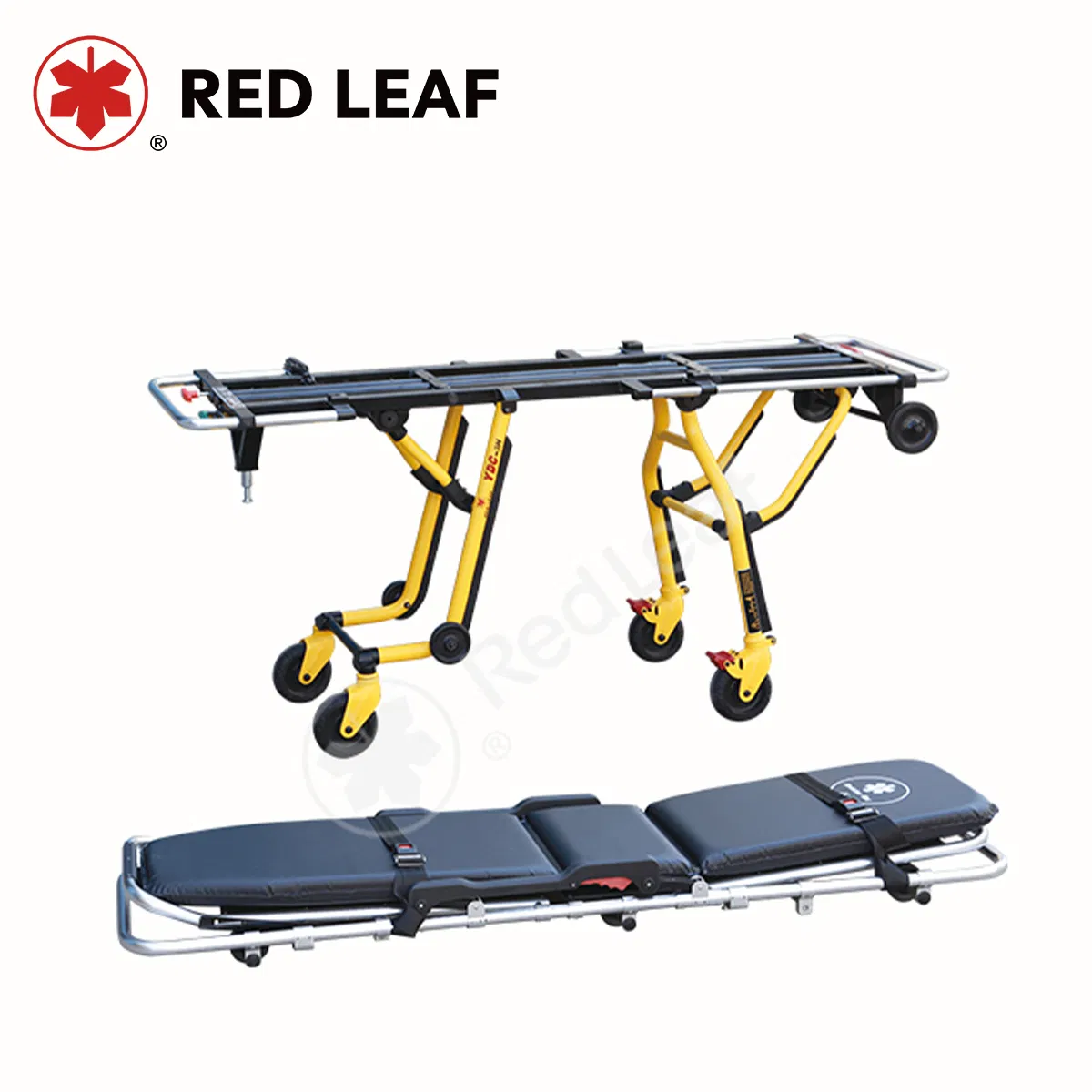

  • Type YDC-3H features a detachable upper frame for enhanced versatility in patient transport.
  • The mattress is made of wear-resistant mesh cloth (6cm thickness), featuring disposable welding, flame retardant, and waterproof properties.
  • Loading height is 62cm with large 150mm wheels for smooth movement.

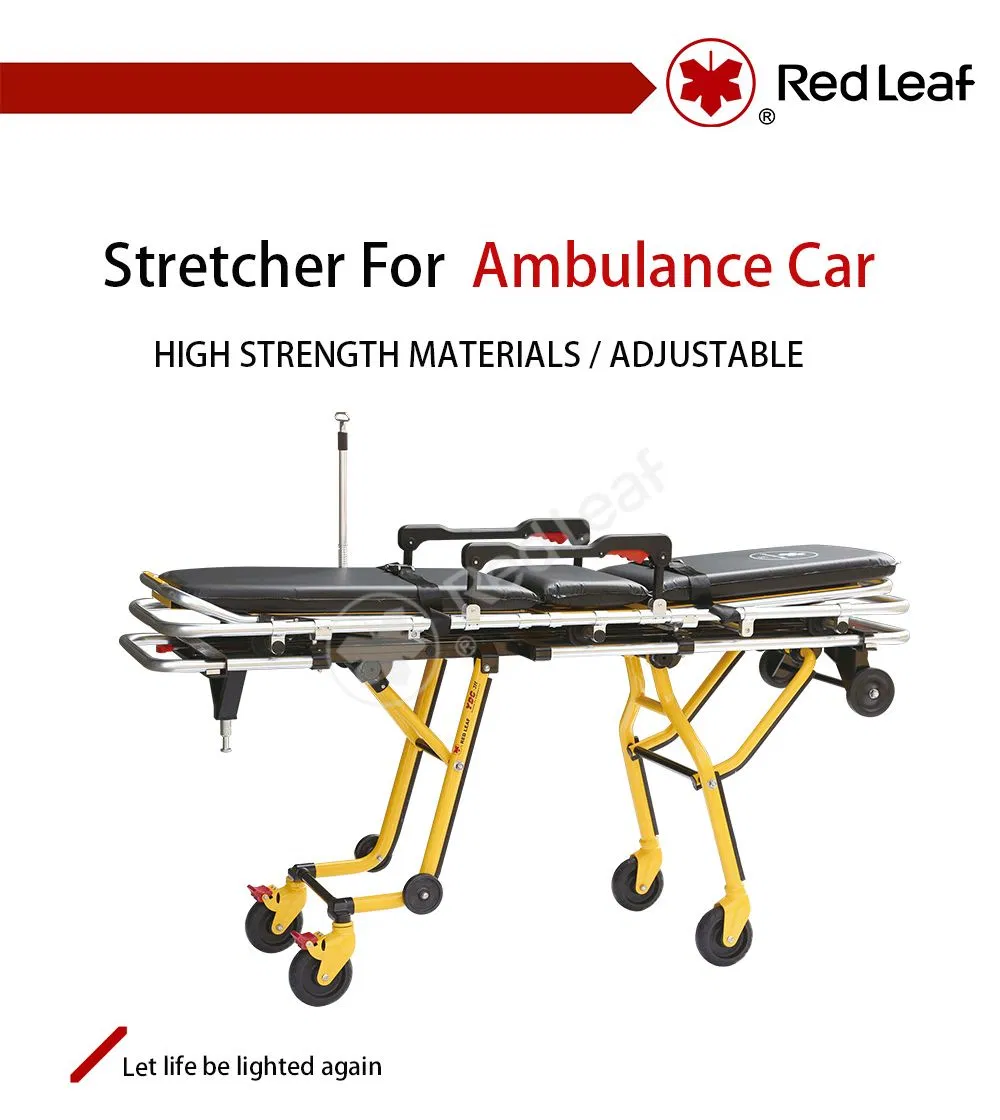

Ambulance Stretcher Details

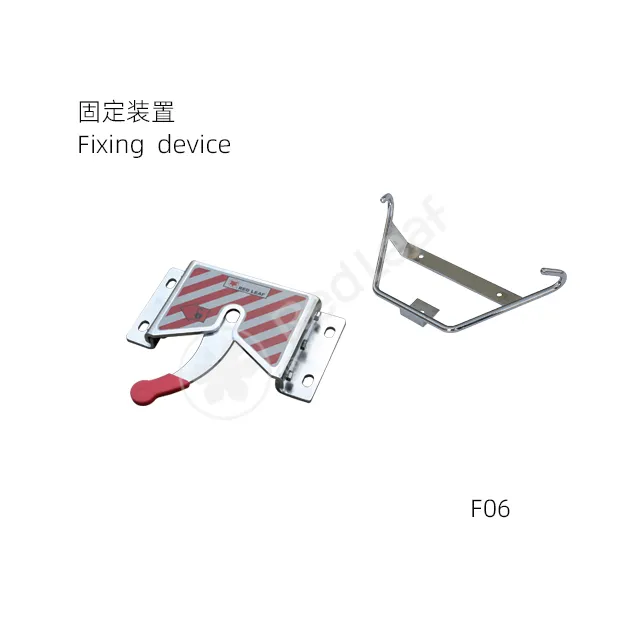

Stretcher Mechanism Side View

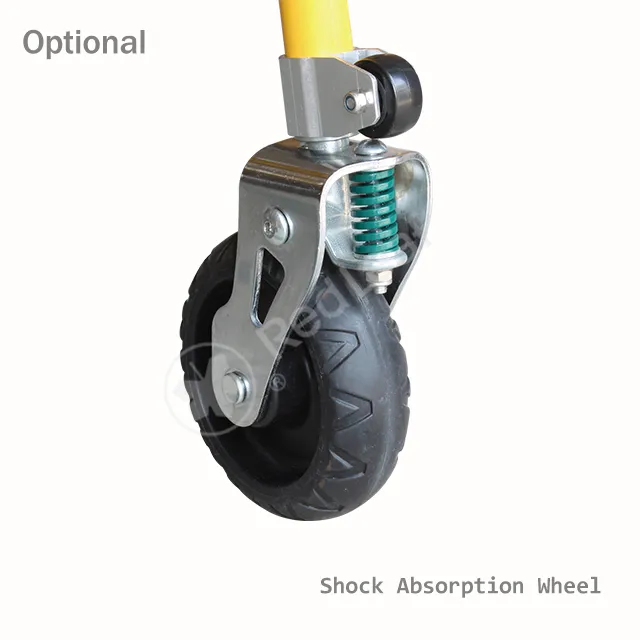

Stretcher Mechanism Detail
📋

Technical Parameters

Model High Position Low Position Max Angle (Back) Max Angle (Knee) Self-Weight Load Bearing Packing Size G.W.
YDC-3H 193*56*90cm 193*56*31cm 65° 15° 45KG 181KG 204*60*48cm 50KG
Medical Stretcher Usage
Medical Stretcher Structure

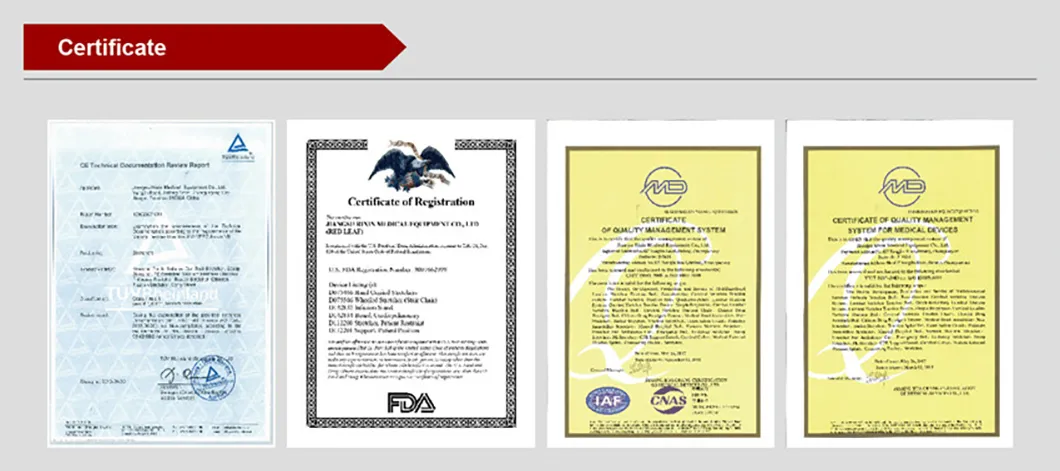

Product Certifications and Features
Stretcher Folded State
Loading into Ambulance
?

Frequently Asked Questions

Are you a factory or trading company?
We are a Professional Manufacturer specializing in emergency stretchers and Rehabilitation Therapy products.
What is the material and durability of the stretcher?
The stretcher is constructed from high-strength aluminum alloy, ensuring it is both lightweight for operators and durable for heavy-duty emergency use, with a load capacity of up to 181kg.
What are your standard trading and payment terms?
We typically require a 30% deposit via T/T after order confirmation, with the remaining 70% balance paid against the bill of lading or via L/C.
What is the typical lead time for an order?
Normally, production and preparation take approximately 15-25 days after the deposit is received.
What kind of after-sales service and warranty do you provide?
We provide a 12-month warranty from the date of receipt. During this period, we supply free spare parts and technical guidance for any necessary replacements.
What quality certifications do your products hold?
Our products are fully certified with FSC, CE, FDA, ISO9001, ISO13485, and EN1865 standards to ensure global medical compliance.
