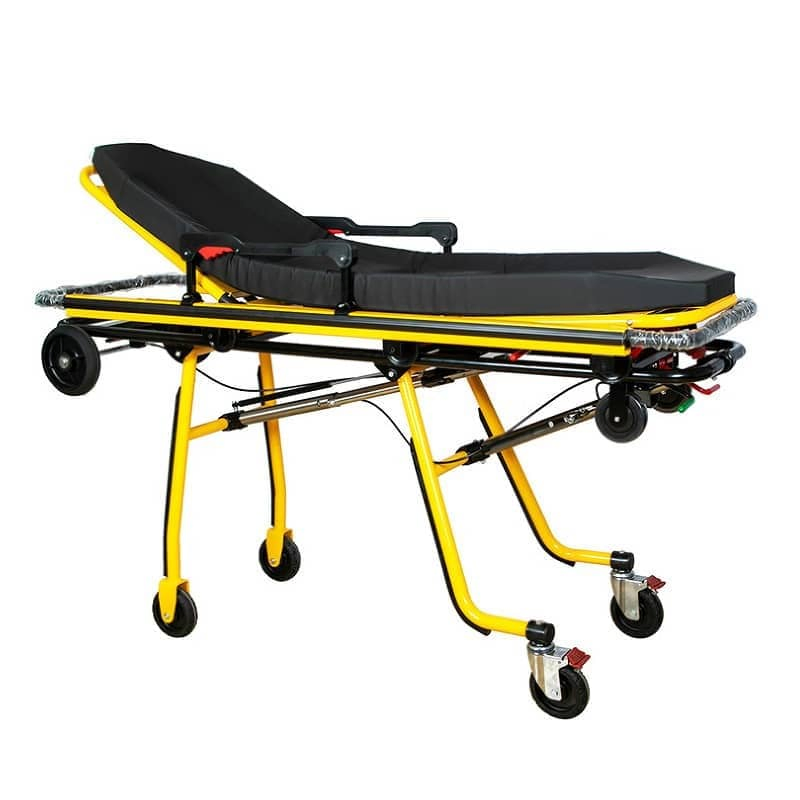

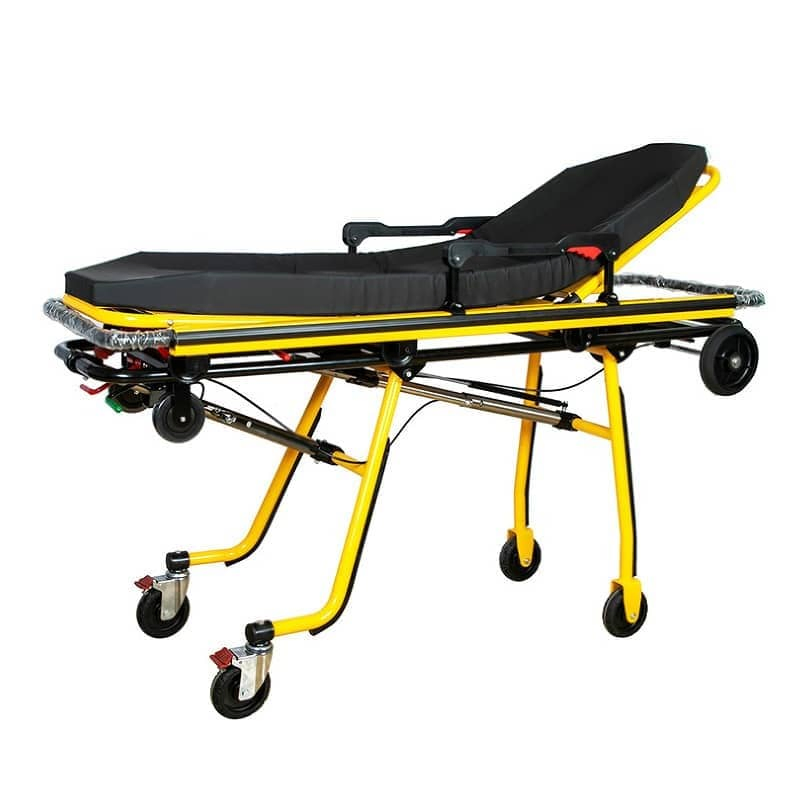

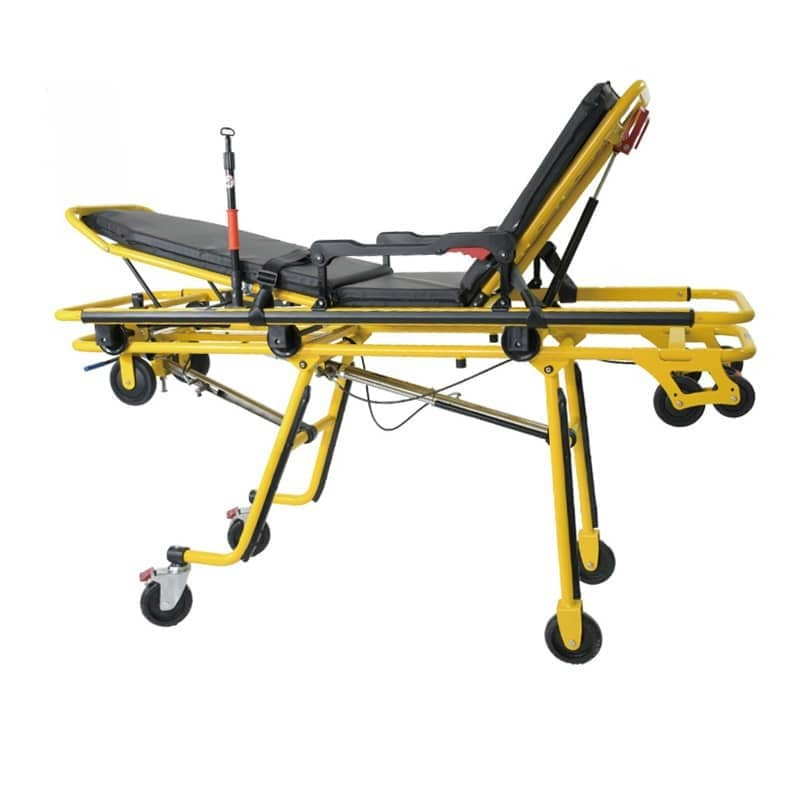

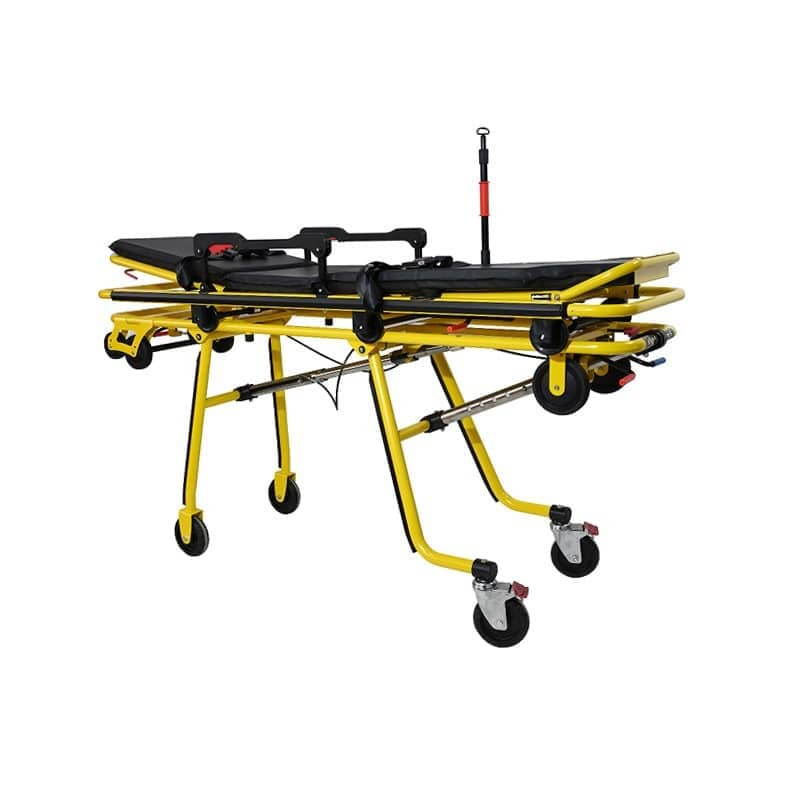

Original Barrier Equipped Adjustable Versatile Hospital Ambulance Stretcher for Transfer
Original Barrier Equipped Adjustable Versatile Hospital Ambulance Stretcher for Transfer
Original Barrier Equipped Adjustable Versatile Hospital Ambulance Stretcher for Transfer
Original Barrier Equipped Adjustable Versatile Hospital Ambulance Stretcher for Transfer
Original Barrier Equipped Adjustable Versatile Hospital Ambulance Stretcher for Transfer
1 / 5
Original Barrier Equipped Adjustable Versatile Hospital Ambulance Stretcher for Transfer
Original Barrier Equipped Adjustable Versatile Hospital Ambulance Stretcher for Transfer
Original Barrier Equipped Adjustable Versatile Hospital Ambulance Stretcher for Transfer
Original Barrier Equipped Adjustable Versatile Hospital Ambulance Stretcher for Transfer
Original Barrier Equipped Adjustable Versatile Hospital Ambulance Stretcher for Transfer

Original Barrier Equipped Adjustable Versatile Hospital Ambulance Stretcher for Transfer

Customization: Available
Color: Yellow
Folded: Folded
Send Inquiry

Product Description

📋 Overview
Ambulance Stretcher Overview
✔ Main material constructed from high-quality Steel and Aluminum alloy with painting treatment.
✔ Equipped with a telescopic rod to adjust the cot across 3 different height levels.
✔ Highly versatile design where both ends of the stretcher can be tilted.
✔ Includes an adjustable two-stage I.V. pole for medical support.
✔ Single-operator design: only one medical staff member is needed to load the stretcher into the ambulance.
✔ Comfortable mattress made of high-density polyethylene covered by waterproof vinyl.
Ambulance Stretcher Detail 1

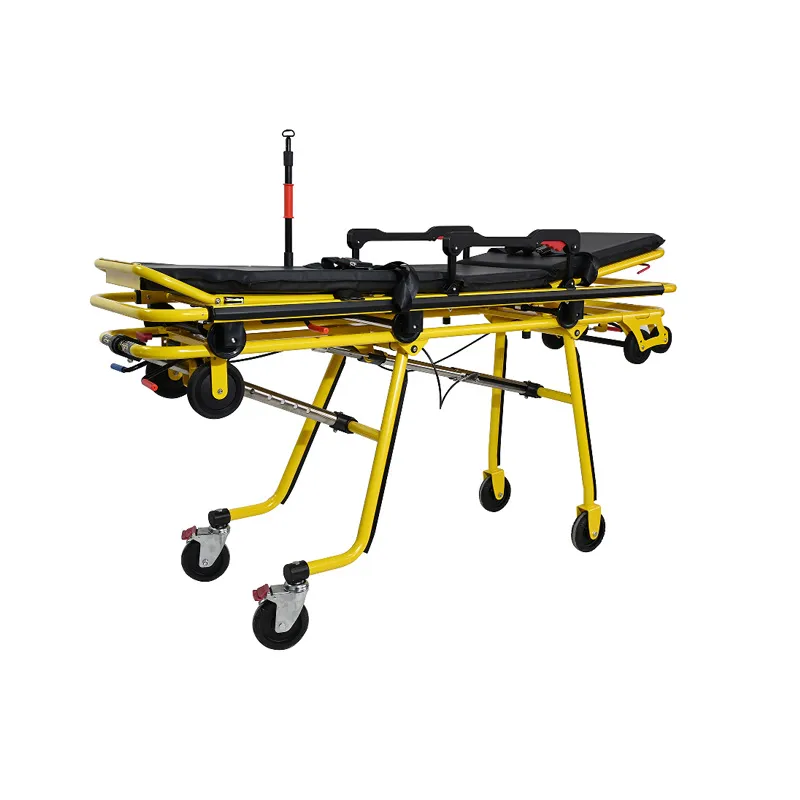

Ambulance Stretcher Detail 2

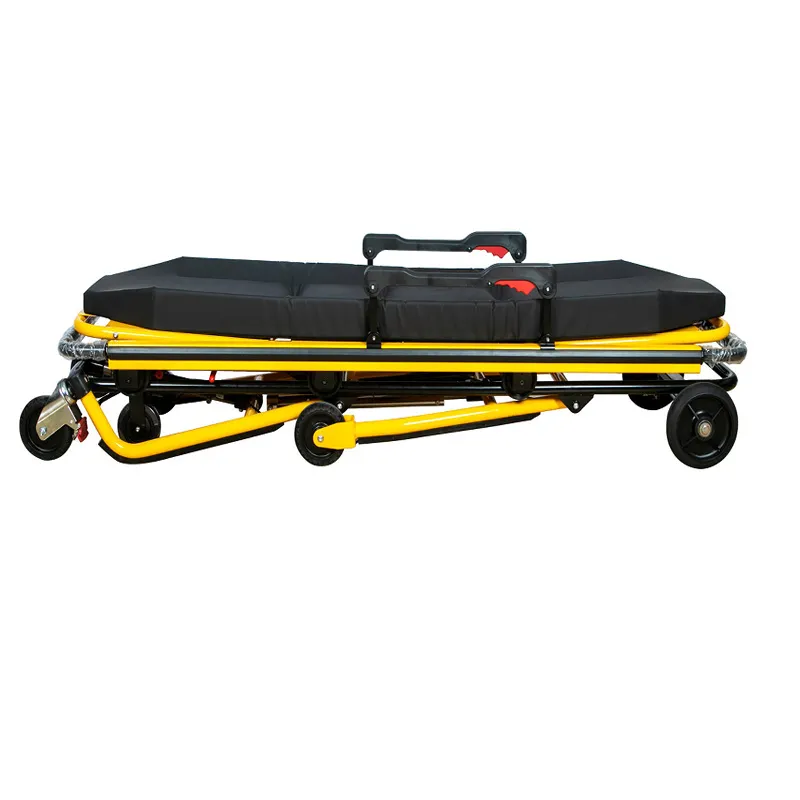

Ambulance Stretcher Detail 3

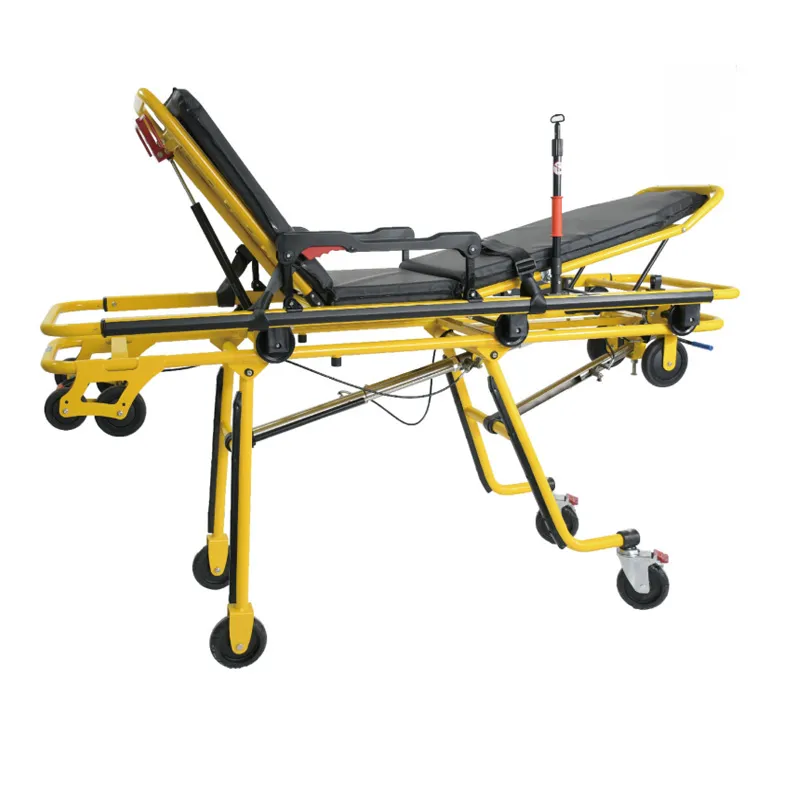

Ambulance Stretcher Detail 4
🛠️ Product Key Features

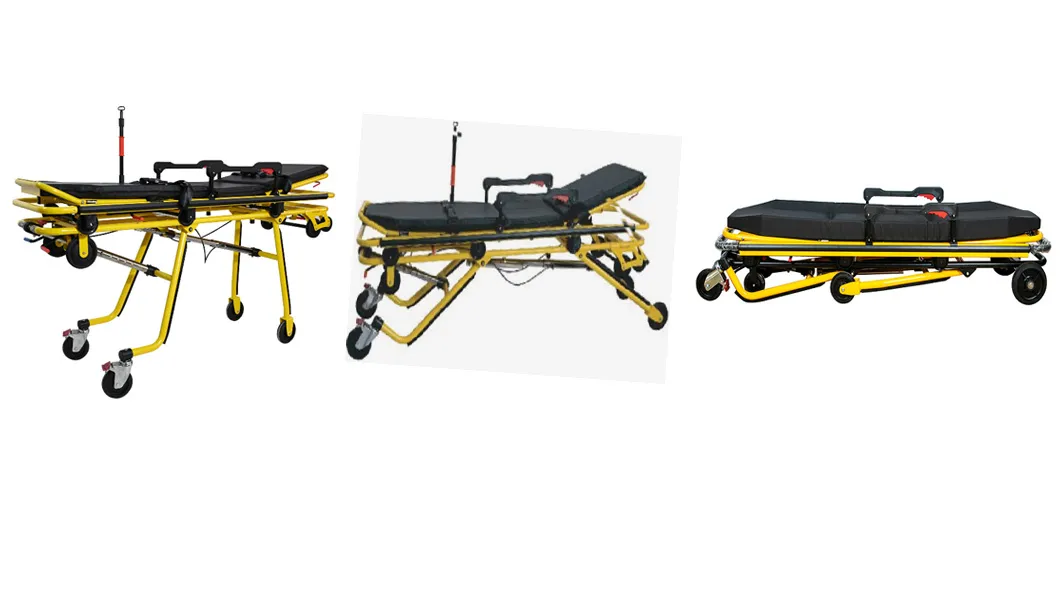

Adjustable Height Stretcher

1. Height Adjustment: The stretcher supports 3 different height positions to accommodate various transfer scenarios.

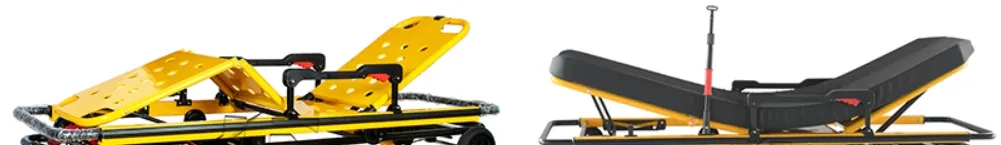

Tilted Stretcher Ends

2. Flexible Tilting: Both ends can be tilted. The backrest is adjustable from 0 - 65 degrees via a gas spring, and the leg rest features 2-position adjustment.

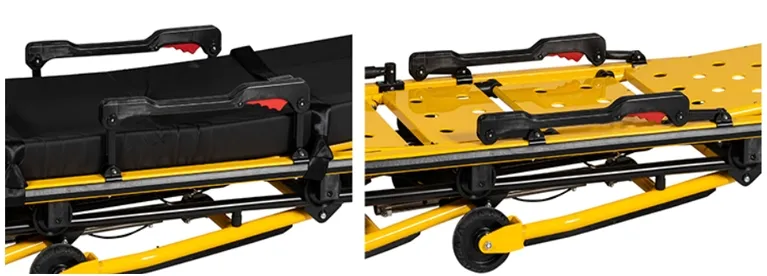

Side Rails

3. Patient Safety: Swing-down side rails are integrated to protect the patient during transfer and movement.

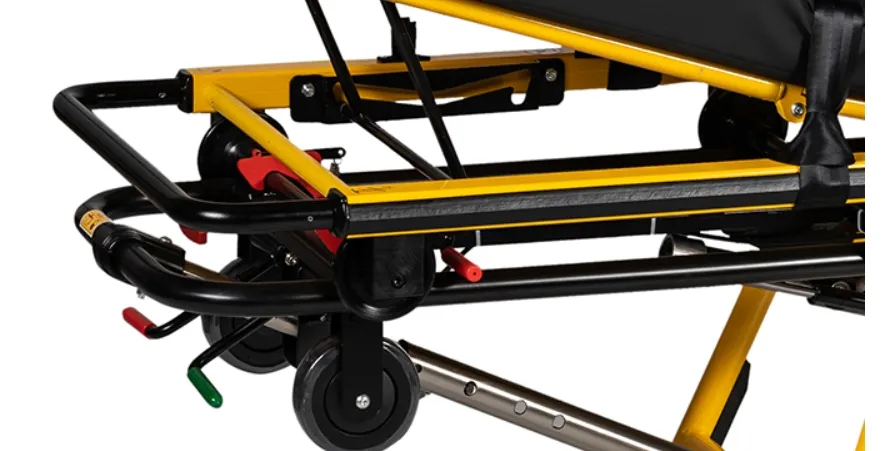

Foldaway Legs

4. Mechanical Control: Mechanical foldaway legs are conveniently controlled by handles located at one end of the stretcher.

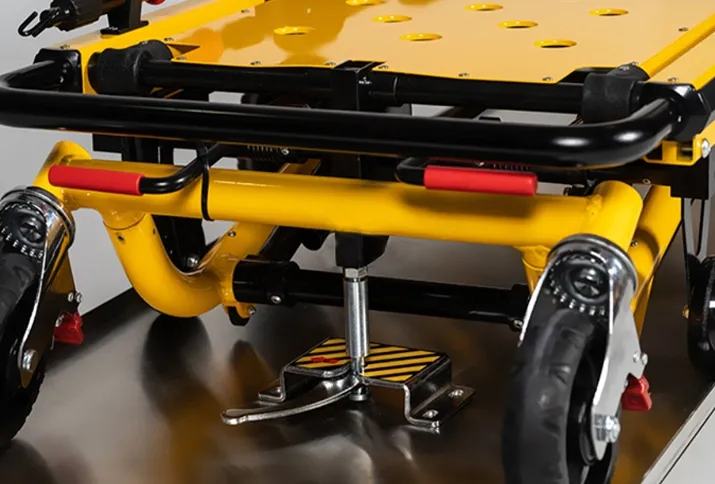

Locking Device

5. Vehicle Integration: The stretcher includes a dedicated fixing device to lock it securely while inside the ambulance.

📊 Product Parameters
Model S016
Material Carbon Steel & Durable Aluminum Alloy
Type Ambulance Stretcher
Dimension 195 × 57 × 91 cm
Height Range 28cm - 78cm - 87cm - 91cm
Castor Φ150mm, Front Fixed, Rear Auto-Directional
Backrest Adjustment 0 - 75 Degree
Leg Part Adjustment 0 - 15 Degree
Max Capacity 200kg (440 Lbs)
Net Weight 40 kgs
Gross Weight 45 kgs
Package Size 207 × 62 × 38 cm (1PC/CTN)
Production Detail 1

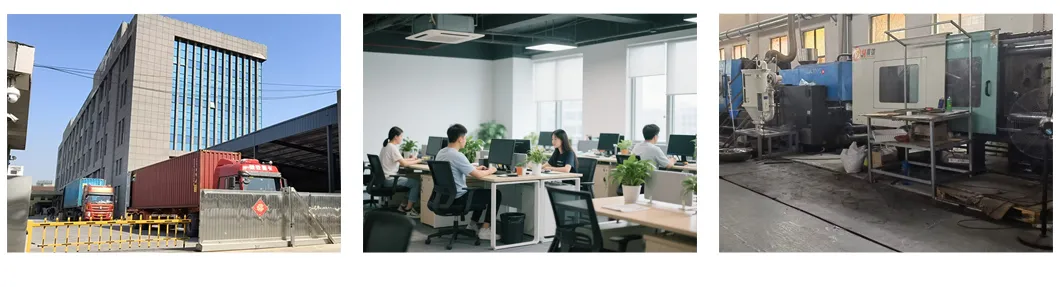

Production Detail 2
❓ Frequently Asked Questions
Q1: Can I request samples of this ambulance stretcher?
Yes, samples are available upon request to verify the quality and functionality of the product.
Q2: Are OEM and ODM services available for this model?
Yes, we offer full OEM/ODM services including logo customization and design modifications to meet your specific requirements.
Q3: What is the primary material used for the S016 stretcher?
The main frame is constructed from a combination of carbon steel and durable aluminum alloy with a protective painted finish.
Q4: What is the maximum weight capacity?
The S016 model is designed for heavy-duty use with a maximum load capacity of 200kg (approximately 440 lbs).
Q5: Is the stretcher easy to load into an ambulance?
Yes, it features mechanical foldaway legs controlled by handles, allowing only one medical staff member to push the stretcher into the vehicle.
Q6: What is the typical lead time for production?
Regular products are often kept in stock. For customized orders, production typically takes between 7 to 15 days depending on the quantity.
