Better Medical Emergency Manual Patient Transfer Stretcher for ICU Room

1 / 5

Better Medical Emergency Manual Patient Transfer Stretcher for ICU Room

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋 Basic Specifications

Model NO.

BT201

Certification

ISO, FDA, CE

Material

Steel Power Coated + PP

Number of Belts

Two

Type

Ambulance Stretcher

MOQ

OEM

Available

Warranty

1 Year

Application

Hospital/Ambulance

Specification

1900*730*540-840mm

Origin

China

Production Capacity

2000/Month

🏥 Product Description

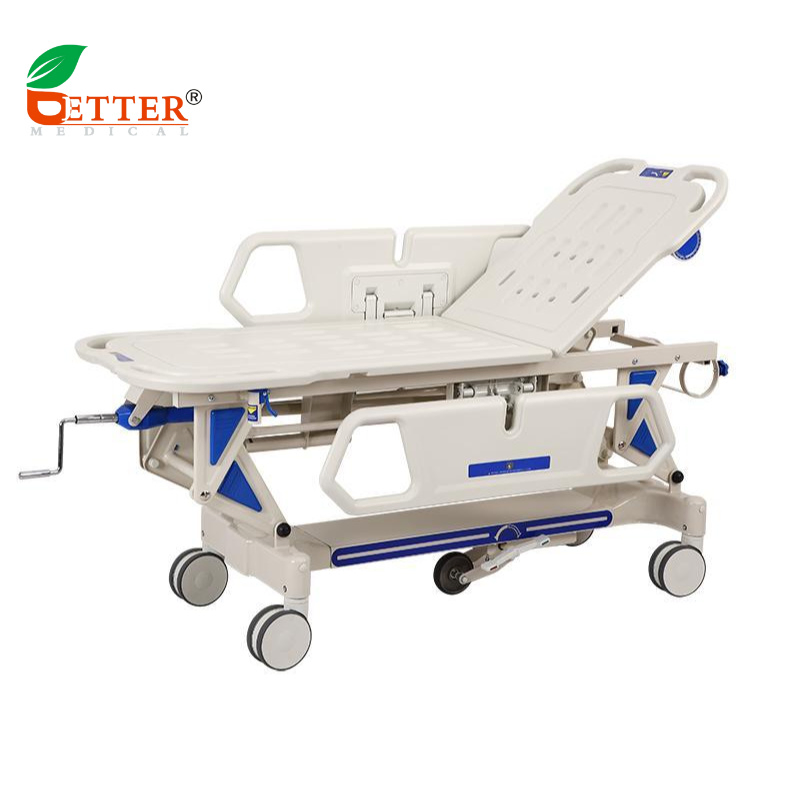

Emergency Manual Patient Transferring Trolley for ICU Room

Model: BT201

Size: 1900*710*830-1130mm
Bed board side: 1900x610mm
Height adjustable: 560-860mm (from ground to bed board)
Backrest adjustable: 0~60 degree
Weight: N.W: 81KGS | Loading capacity: 175kgs

🛠️ Material & Construction

Steel Power Coated + PP + ABS + stainless steel + rubber. Features a steel powder coated frame, PP side rails, ABS bed board, and stainless steel crank with rubber castors.

📦 Standard Accessories

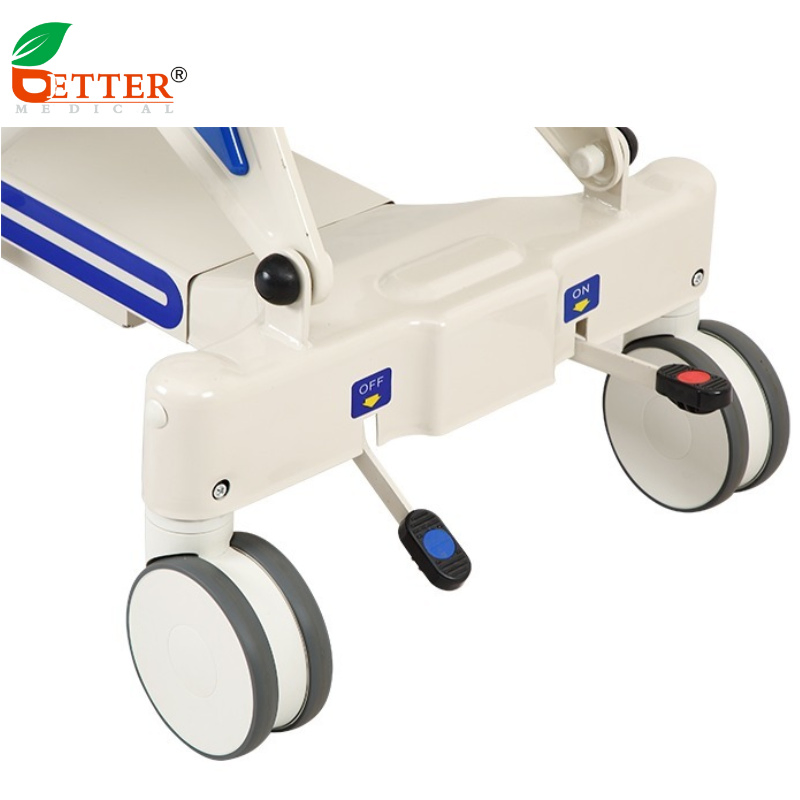

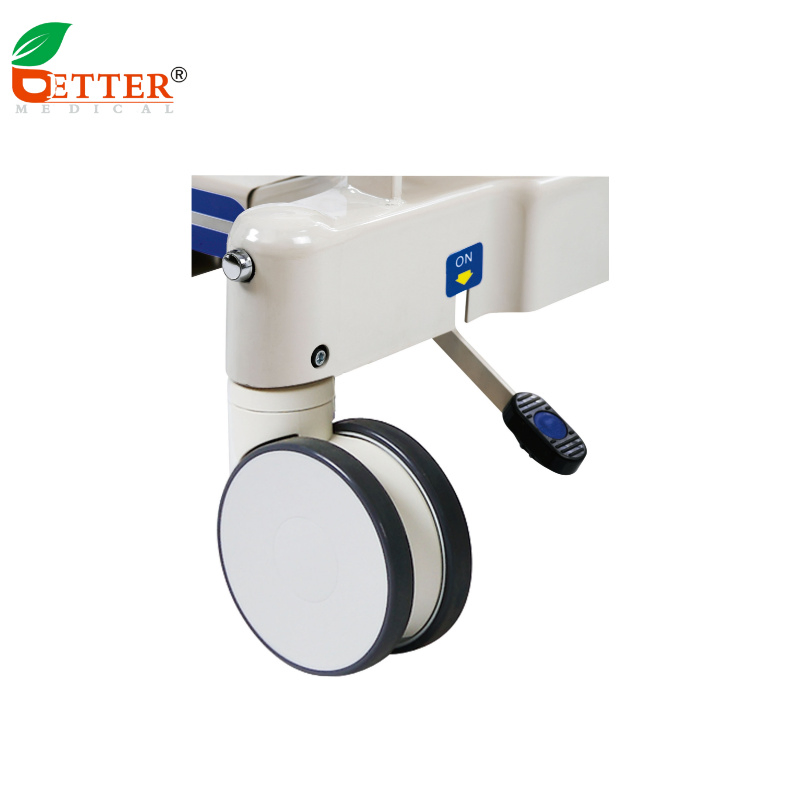

5" luxurious castors with central-controlled brake system
Two foldable PP Guardrails

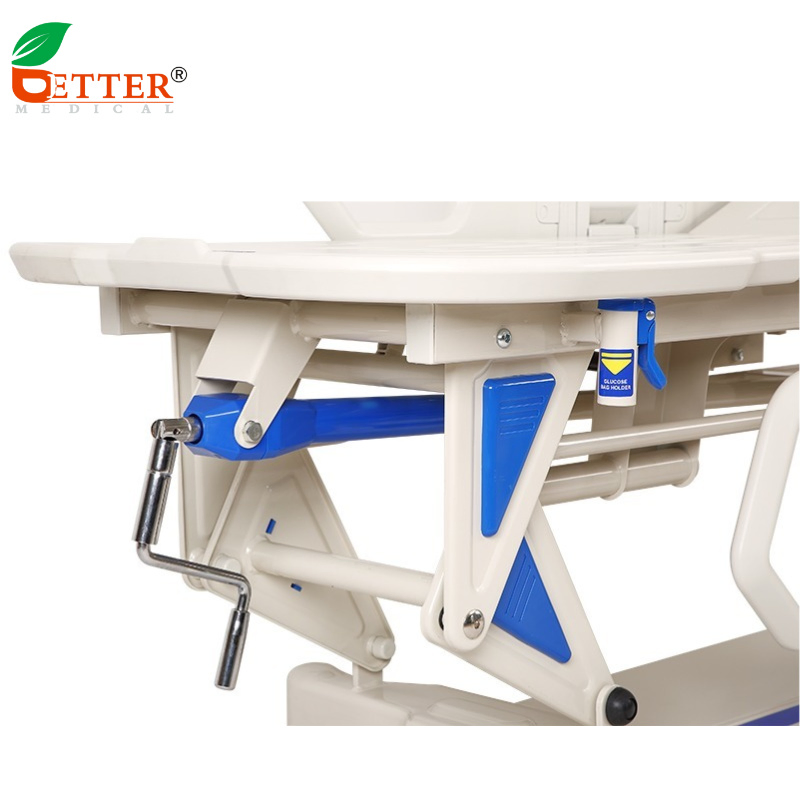

1 set of stainless steel crank
1 set of Backrest adjustable by hydraulic pressure pole
1 set of steering device and 1 piece of mattress

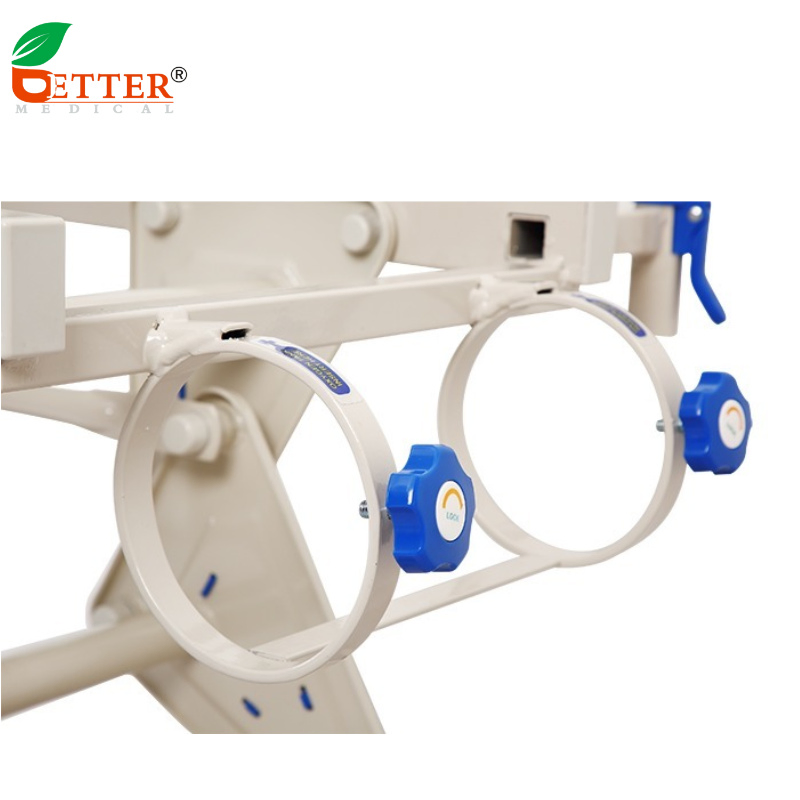

4pcs Drip stand holder and 1pc oxygen tank holder
Option: I.V. drip

✨ Cleaning and Maintenance

General cleaning: Use a soft cloth dipped in diluted neutral detergent, then clean with fresh water and wipe dry. Do not use volatile items like diluents or propellants. This product is not high temperature resistant; please use low-temperature disinfection.

Safety Inspection: Maintenance should be performed by professionals annually. Check for clamping stagnation, fastener loosening, and apply oil to rotating positions for flexibility.

🏠 Storage Guidelines

Avoid high temperature, damp, and dusty environments. Ideal range: Temperature -10ºC~40ºC, Humidity <80%RH, Atmospheric pressure 760hPa~1060hPa. Store in a well-ventilated room at the lowest height position.

🛡️ Quality Assurance

Enjoy maintenance services for one and a half years for malfunctions under normal use. Warranty does not cover damage from misuse, unauthorized tampering, improper transport/installation, or natural disasters such as fire, earthquakes, and floods.

❓ Frequently Asked Questions

What is the maximum loading capacity of the BT201 stretcher?

The BT201 patient transfer stretcher has a robust loading capacity of 175kgs.

Is the height of the stretcher adjustable?

Yes, the height is adjustable from 560mm to 860mm from the ground to the bed board to accommodate different transfer needs.

What materials are used in the construction?

It is constructed using a steel powder-coated frame, PP side rails, an ABS bed board, and stainless steel cranks for durability and hygiene.

Does it come with a braking system?

Yes, it features 5" luxurious castors equipped with a central-controlled brake system for safety and stability.

What are the recommended storage conditions?

It should be stored in a well-ventilated room with temperatures between -10ºC to 40ºC and relative humidity below 80%.

What is the warranty period for this product?

The product comes with a standard 1-year warranty, with specific maintenance services available for up to one and a half years under proper usage conditions.
