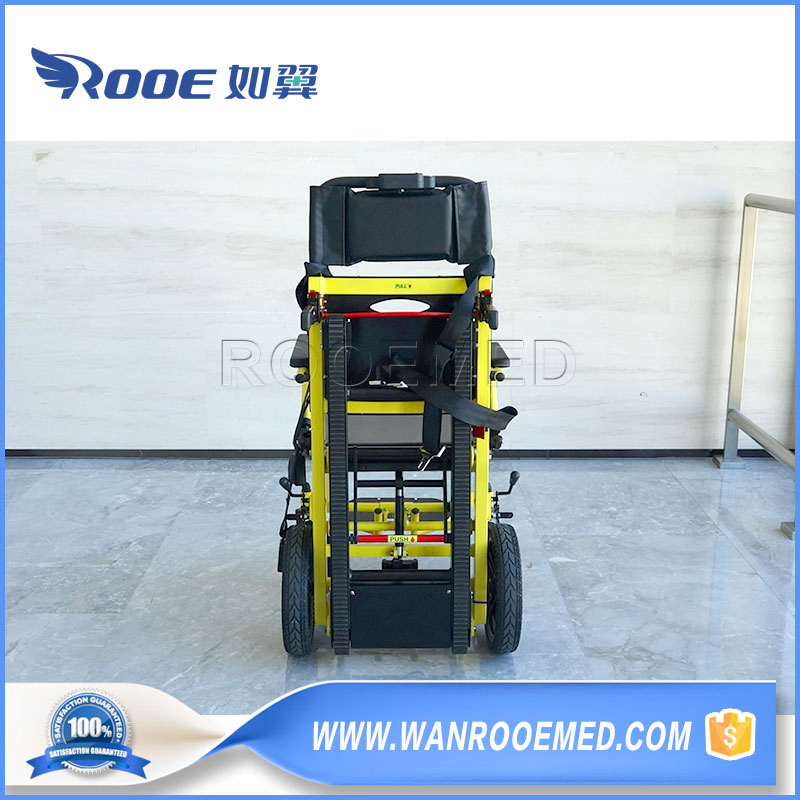

Ea-6fpn PRO Elderly Electric Evacuation Climbing Wheel Stair Lift Chair Stretcher for Disabled People

Customization: Available
Color: Red, Yellow, Blue and Customizable
Folded: Folded

Product Description

Basic Specifications
Model NO.
EA-6FPN Pro
Certification
ISO, CE
Material
Aluminum Alloy
Type
Electric Stair Stretcher
Load Capacity
160kg
Motor Speed
45 Steps Per Minute
Feature
24/36V, Quick Evacuation
Design
One-Button Folding
Product Description
EA-6FPN Pro Elderly Electric Evacuation Climbing Wheel Stair Lift Chair Stretcher

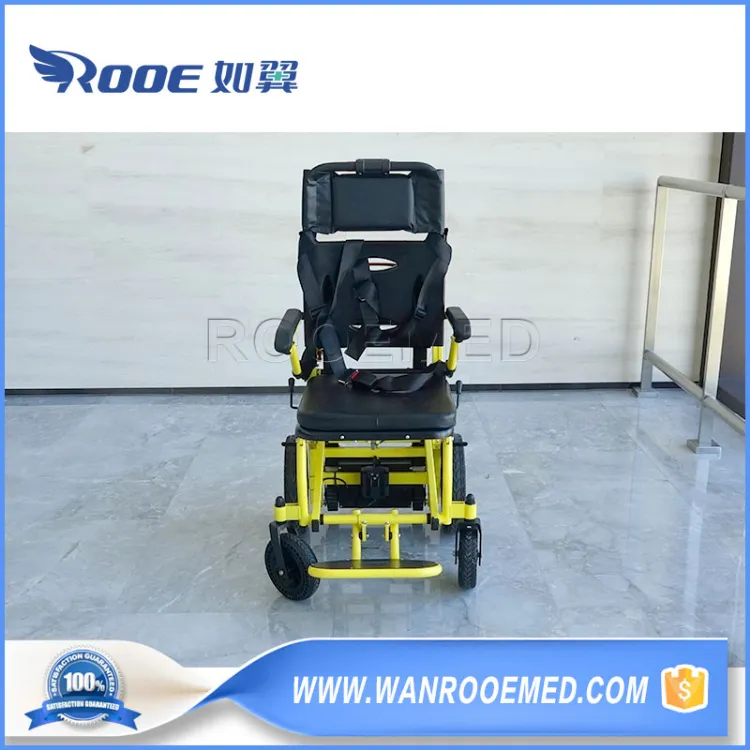

Electric Stair Lift Chair
  • Aluminum alloy material: foldable, compact structure, and lightweight.
  • Advanced Safety: Electric climbing system parks on stairs without sliding or falling.
  • Smooth Operation: Moves along the track effortlessly for up and down transit.
  • 4 Wear-resistant Wheels: Front 6-inch, Rear 12-inch honeycomb wheels for shock absorption.
  • Stable Braking: Double-side parking brake design ensures safety.
  • Natural Rubber Crawler: Horizontal stripes for superior grip and wear resistance.
  • One-Button Folding: Lightweight seat can be folded at will for quick storage.
  • Adjustable Height: Three-stop adjustment (120 to 160 cm) to suit different users.
  • Intelligent Screen: Includes power switch, speed control, power display, and lighting.
  • Lithium Battery: 24V endurance battery (removable) with optional 36V motor for higher power.
Technical Specifications
MODELEA-6FPN Pro
UN-FOLD SIZE120~160 * 55 * 45cm
FOLDED SIZE157 * 55 * 45cm
NET WEIGHT40kg
LOAD-BEARING160kg
CHARGING TIME2 hours (Approx. 15 times for 5-floor buildings)
BATTERY LIFE3~5 Years (500 cycles)
MOTOR24V, 200W High Quality (Optional 36V for evacuation speed)
SPEEDApprox. 45 steps per minute
Comparison & Optional Accessories

Difference between Plus and Pro:

  • Pro version offers 36V motor option; Plus is 24V only.
  • Pro features One-click closing; Plus is manual closing.

Accessories Included: Vest belt, lithium battery, wrench set, sponge pad.

Optional: Pillow, dust cover, wall bracket, 36V battery.

Product Details & Use Cases

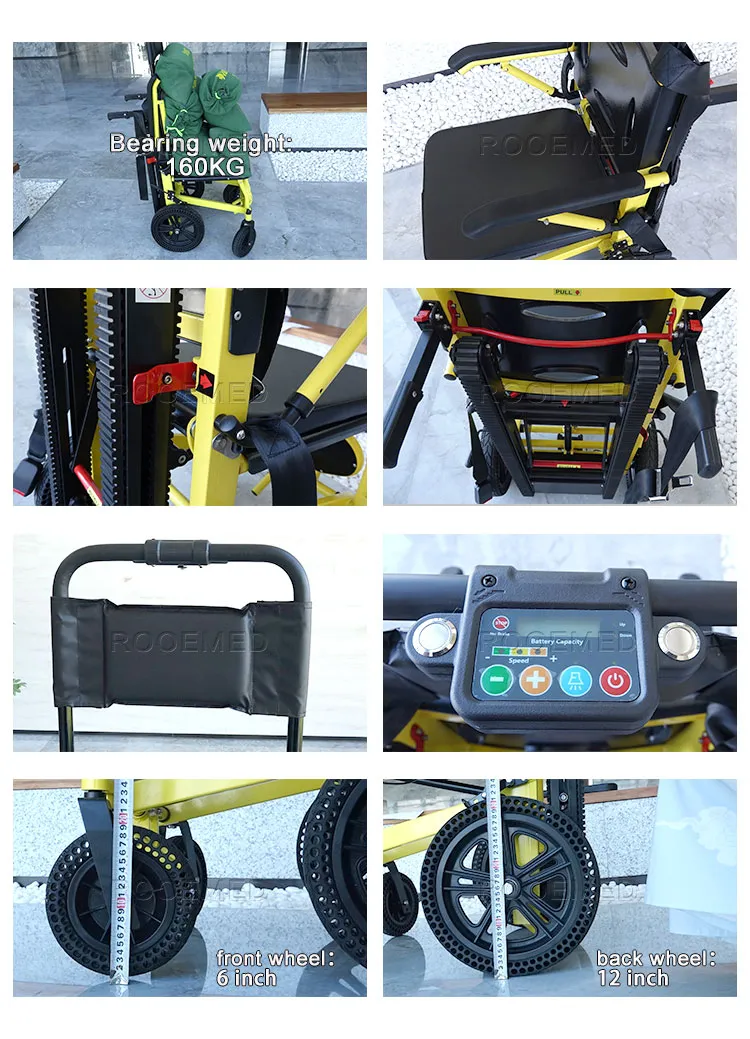

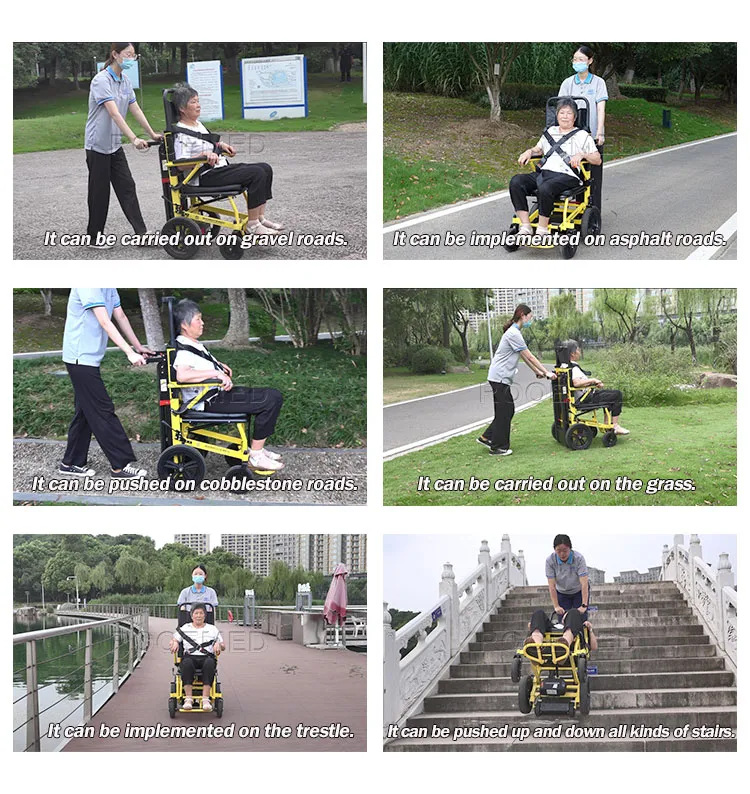

Detail View 1 Detail View 2

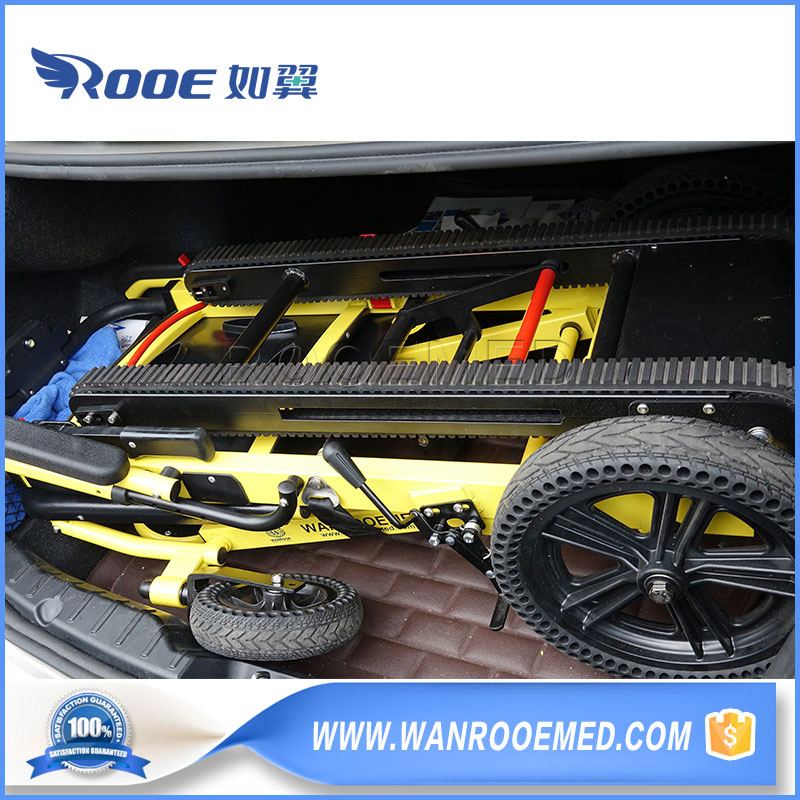

Foldable Design View
Frequently Asked Questions
Q1: What is the maximum load capacity of the EA-6FPN Pro?
The stair chair is designed to safely support a maximum load of up to 160 kg.
Q2: How fast can the chair climb stairs?
It climbs at a speed of approximately 45 steps per minute, which can be adjusted via the intelligent control screen.
Q3: Is the chair difficult to fold?
No, the EA-6FPN Pro features a one-button folding design, making it extremely easy to collapse for storage or transport.
Q4: Can this be used as a standard wheelchair on flat ground?
Yes, it is equipped with 4 wear-resistant wheels (6-inch front and 12-inch rear) allowing it to function as a stable wheelchair on flat surfaces.
Q5: How long does the battery last on a full charge?
A full 2-hour charge typically allows the chair to travel up and down a 5-story building approximately 15 times.
Q6: Is it safe to use on steep stairs?
Yes, the crawler tracks are made of high-grip natural rubber and the motor system is designed to park on stairs without sliding.
