Great Performance Cooler Refrigerator Chamber Morgue Body Freezer

Customization:	Available
Customized:	Customized
Certification:	CE

i

Basic Specifications

Model NO.

STG-6

Scale

Medium

Type

Cryobiology Cooling Device

Material

201/304 Stainless Steel

Temp Range

-16 to 10 Celsius Degree

Capacity

6 Bodies Mortuary Refrigerator

Weight

800kg

Warranty

12 Months

HS Code

8418402900

Origin

China

✓

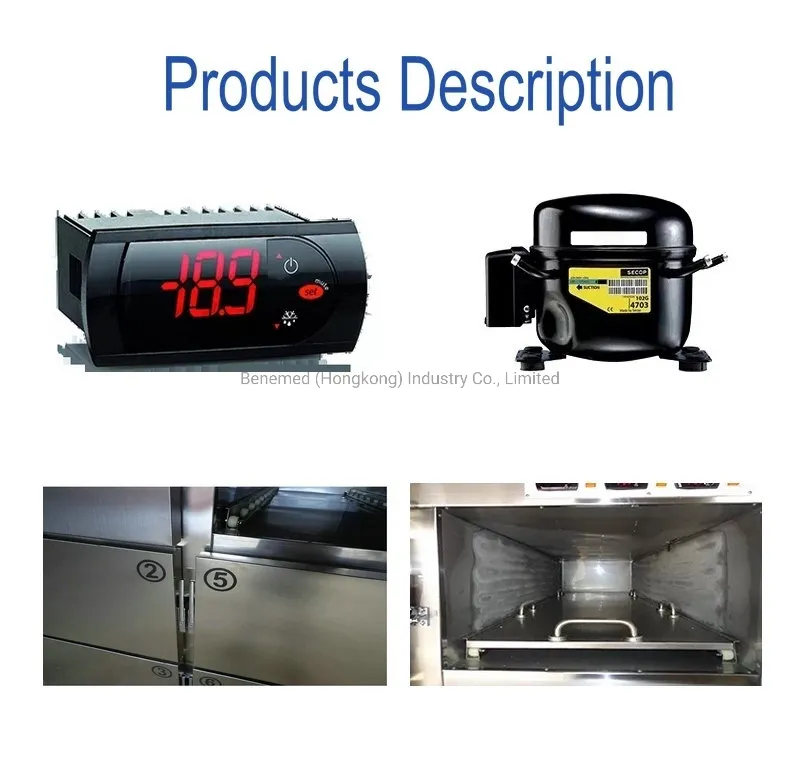

Product Description

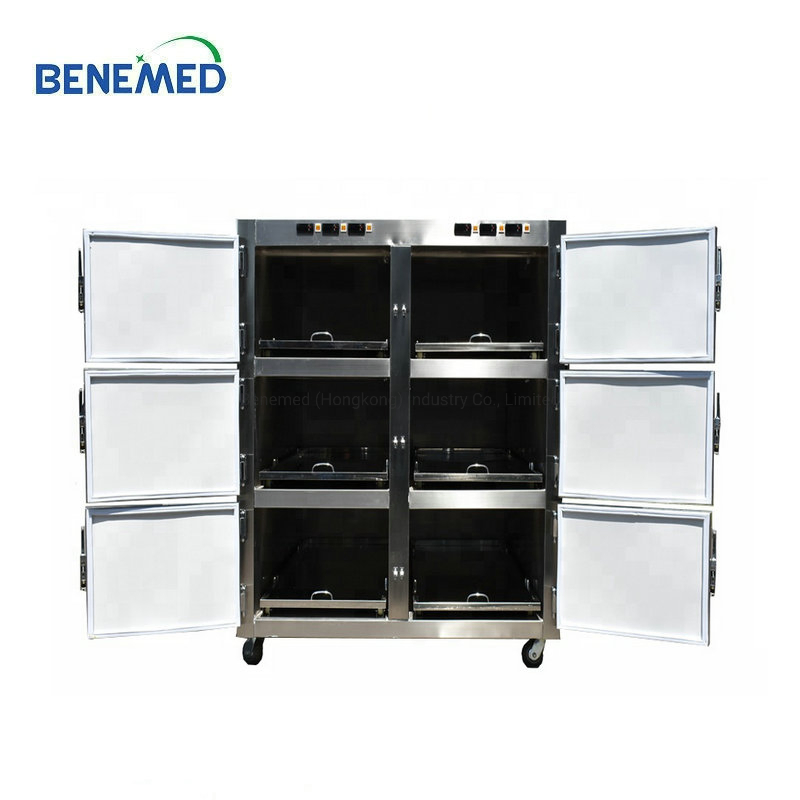

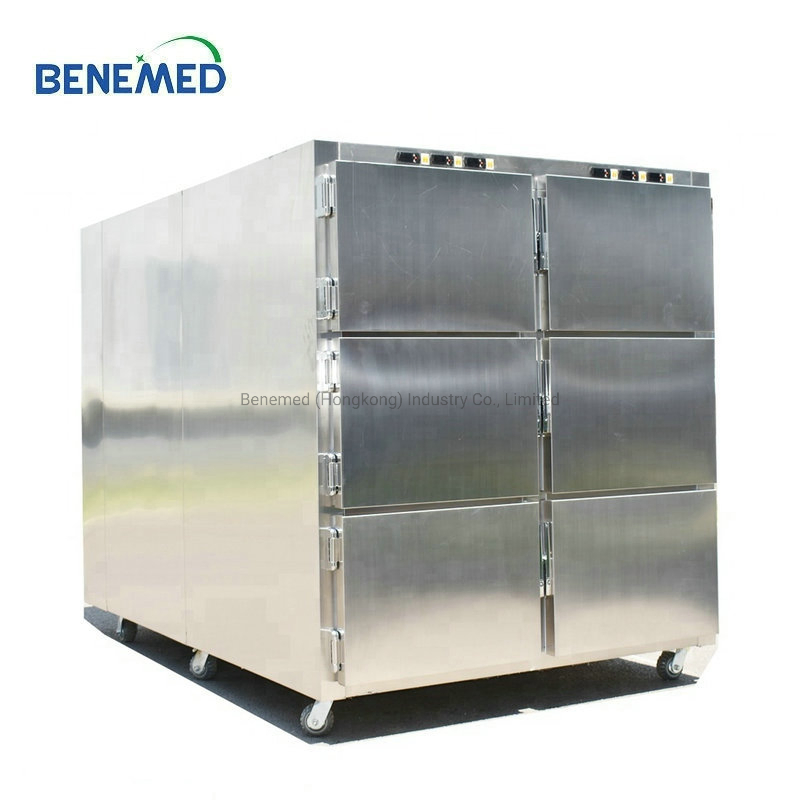

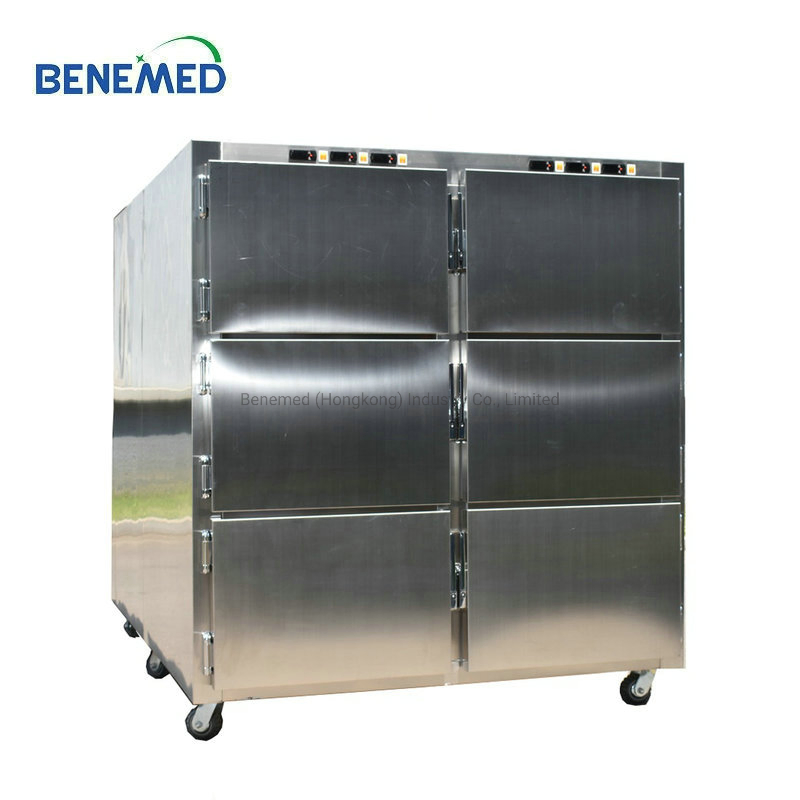

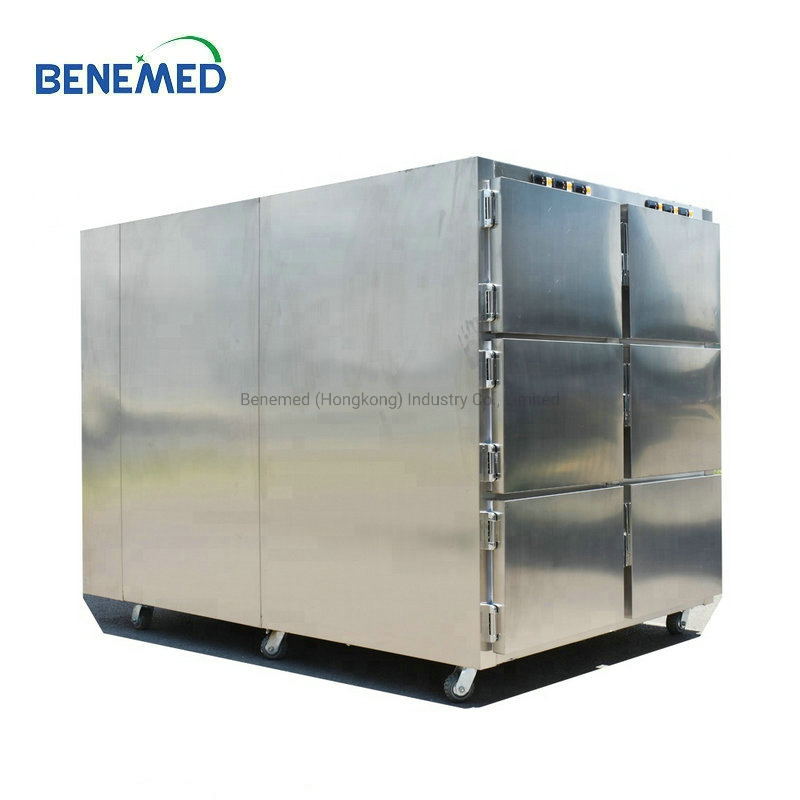

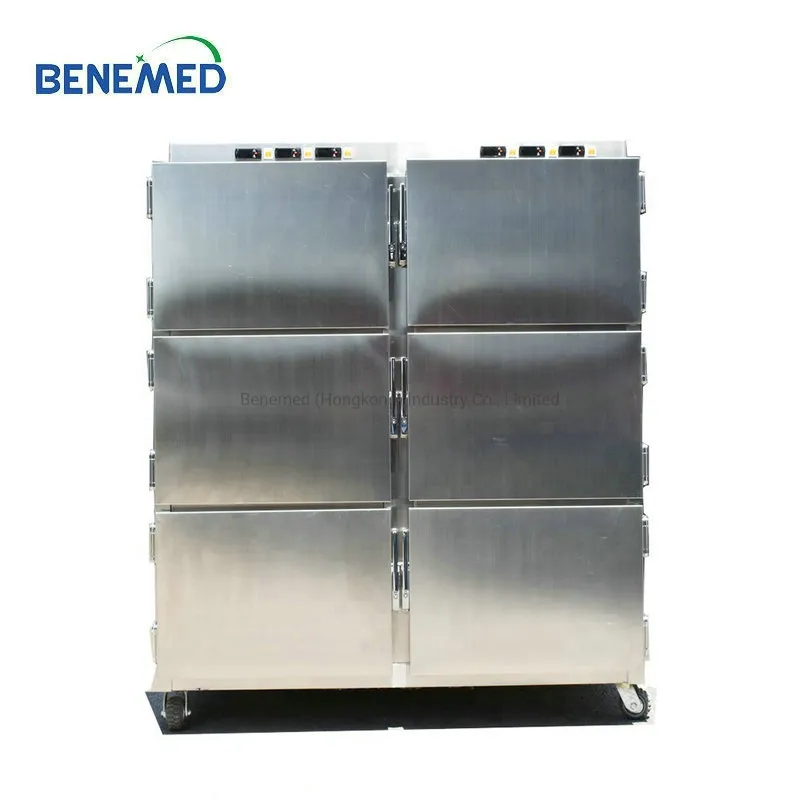

Great Performance Cooler Refrigerator Chamber Morgue Body Freezer

Products Name	Medical cadaver refrigerator casket funeral coffin 6 drawer mortuary refrigerator price
Application	Heavy loading Mortuary refrigerator for Funeral room and Labs
Temperature control	-18ºC to 0ºC adjustable. Computer micro-control system with display of 0.1 ºC.
Material	304 or 201 stainless steel / Entire body 1.2 mm, Body Tray 1.5mm
Insulation layer	80 to 100 mm thickness entire Shaped environmental friendly Polyurethane foam.
Alarm System	Door open, temperature difference, machine malfunction, power off
Voltage	220v/ 50Hz (Optional 110v, 60Hz)
Input power	2100 W or 3 HP
Inner size (WDH)	1980650450 mm
Exterior size (WDH)	252016001800 mm
Drainage System	Evaporative drainage, no sewage discharge required.

📷

Visual Display

?

Frequently Asked Questions

What is the cooling range for the 6-body morgue freezer?

The temperature is adjustable between -18ºC and 0ºC, with a computer micro-control system that provides a precise display accuracy of 0.1ºC.

What materials are used in the construction of this refrigerator?

The unit is constructed from high-quality 304 or 201 stainless steel. The main body thickness is 1.2mm, while the body trays are 1.5mm for reinforced durability.

How thick is the insulation layer in the mortuary chamber?

It features an insulation layer of 80 to 100 mm thickness, made of environmentally friendly polyurethane foam for maximum thermal efficiency.

Does the system include any safety alarms?

Yes, the device is equipped with multiple alarm functions, including door open alerts, temperature difference warnings, machine malfunction indicators, and power-off alarms.

What are the power and voltage requirements?

The standard configuration is 220V/50Hz with an input power of 2100W (3 HP). 110V/60Hz options are also available upon request.

Is there a warranty provided for the STG-6 model?

Yes, we provide a 12-month warranty along with free spare parts as part of our after-sale service.
