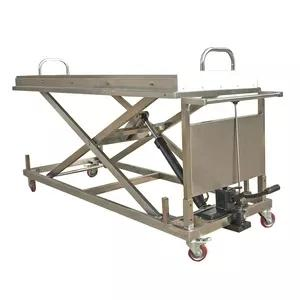

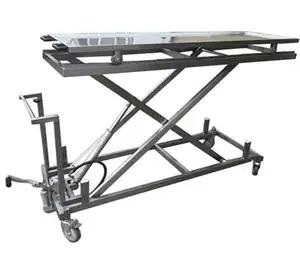

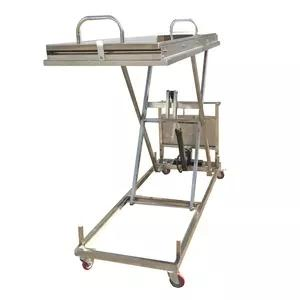

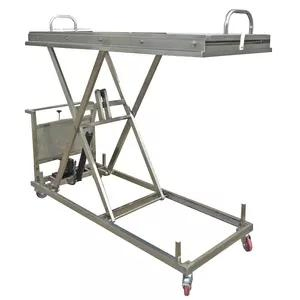

Henan Hydraulic Lifting Mortuary Trolley Mobile Cadaver Corpse Transport Stretcher Mortuary

Customization: Available
Customized: Customized
Certification: CE

Product Description

📋 Basic Information
Model NO.
YJ-ADT3
Scale
Large
Alarm
Over-Temperature Alarm Function
Type
Medical Cryostat
Name
Mortuary Body Lifting Trolley
Application
Adult, Mortuary / Morgue / Hospital
Max Load
200kgs
Style
American Style
Electric
220V/110V 50~60Hz
Packing Size
2300*750*450mm
Origin
China
Capacity
500 pieces/Month
⚙️ Product Description

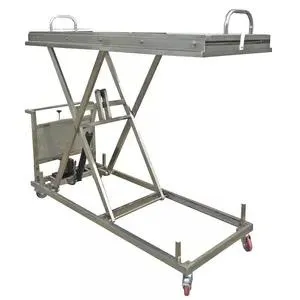

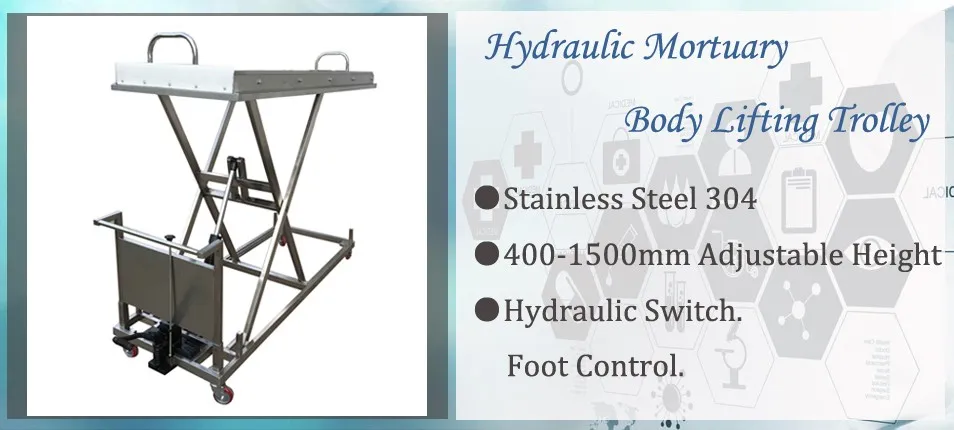

Hydraulic Mortuary Body Lifting Trolley

Hydraulic Lifting Mortuary Trolley
Introduction

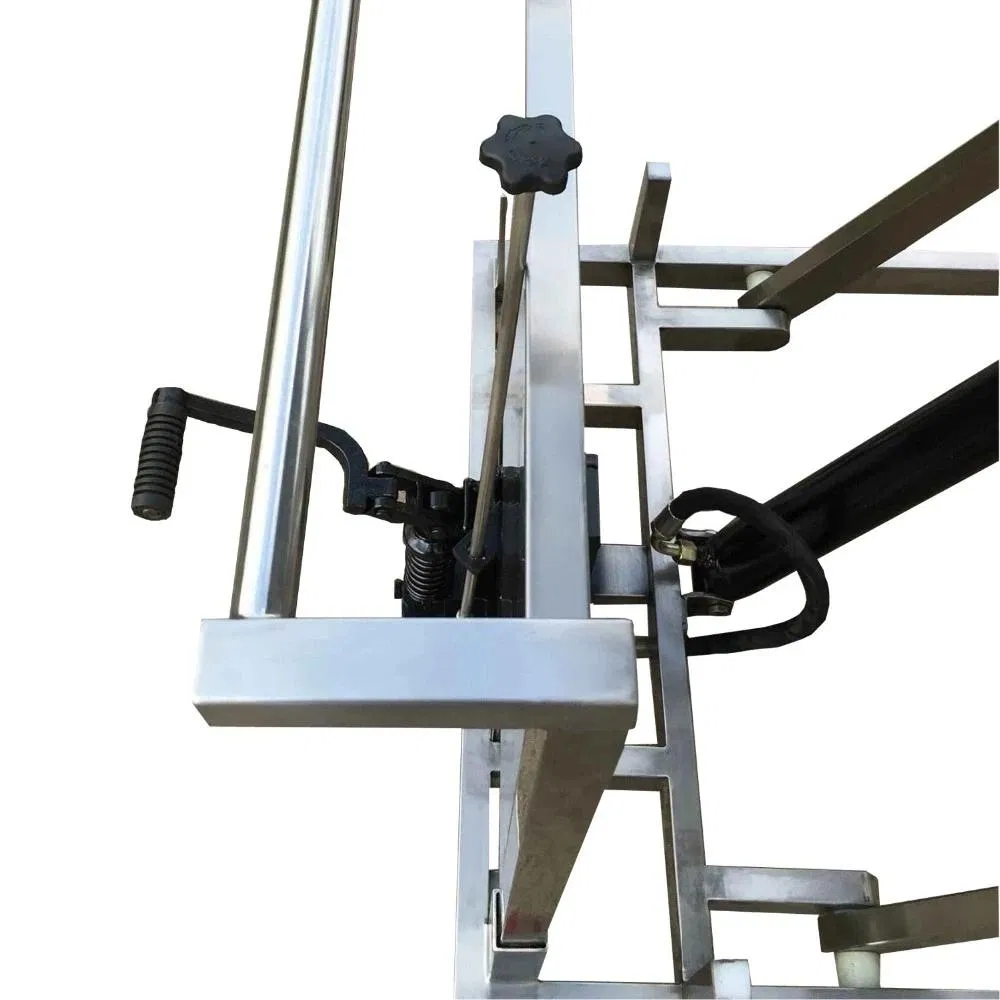

The lift and transport truck features a rugged design with an integrated 12 Volt hydraulic unit for vertical adjustment, enabling easy handling of cadavers.
  • Vertical adjustment controlled via an UP / DOWN foot switch with an EMERGENCY OFF safety switch.
  • Maintenance-free drive battery ensures constant power supply; supplied with a separate electronic rapid charger.
  • 4 steerable solid rubber wheels (diameter 125 mm), 2 lockable, 1 directional lock, with permanently lubricated roller bearings for noiseless movement.
  • Low deadweight permits straightforward shunting and operation.
  • Special valve ensures even lowering even under various loads.
  • Stainless steel roller track comprising 5 carrying rollers with plastic coating.
  • Holding device secures the body tray or coffin plate during transport.
  • Removable slide handle and front-end anti-collision buffer.
📊 Technical Specifications

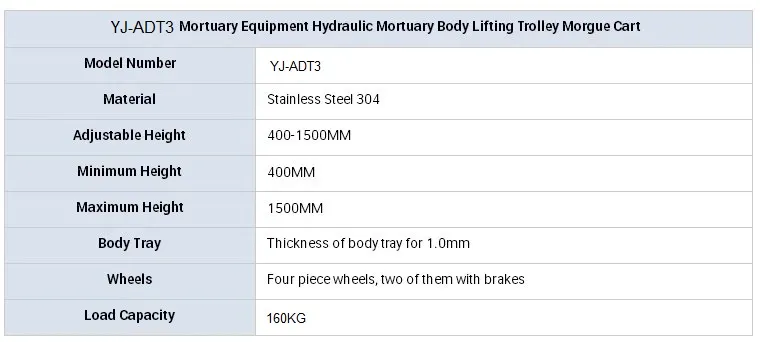

Technical Detail

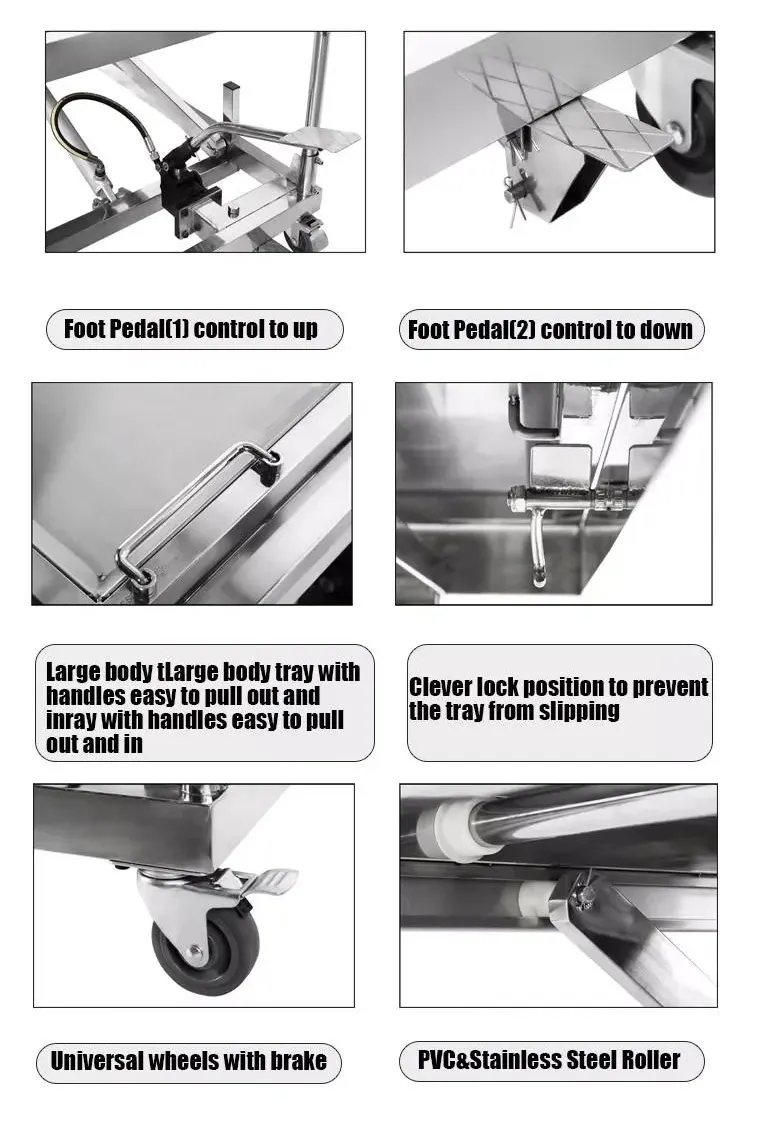

Dimension Chart

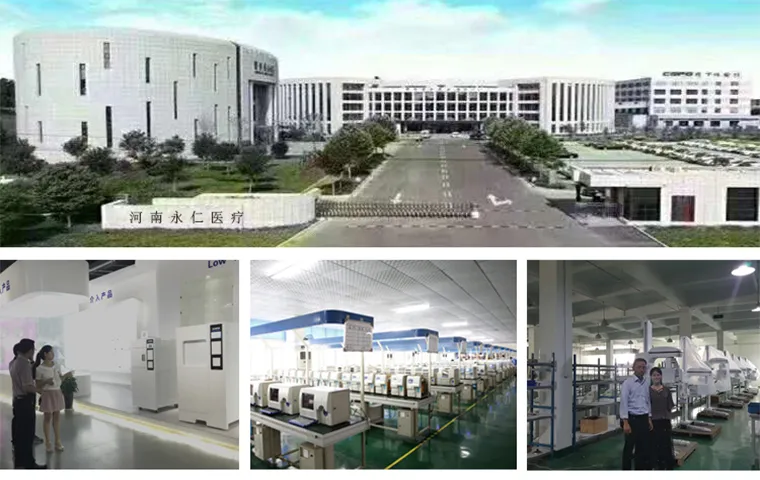

🏢 Professional Medical Equipment Provider

We are a professional medical equipment company specializing in the R&D and sale of medical devices. As a leading supplier, we offer a wide range of products including medical x-ray machines, ultrasound scanners, lab equipment, ICU equipment, and cold chain medical deep freezers.

Our Mission: Easy and Simple Medical Solutions

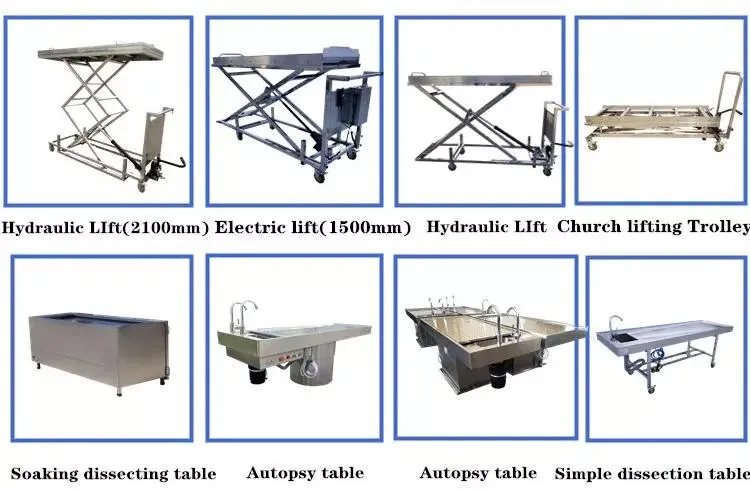

Related Products

Customer Visits & Logistics

Package
Wooden case
Delivery Time
3-5 working days after payment
Payment
T/T in advance

Certifications

Certificates
Frequently Asked Questions
What is the maximum load capacity of the YJ-ADT3 lifting trolley?
The trolley is designed to handle a maximum load weight of 200kgs, making it suitable for adult cadaver transport.
How is the height of the trolley adjusted?
The height is adjusted via an integrated 12 Volt hydraulic unit, which is conveniently controlled by an UP / DOWN foot switch.
Is the trolley easy to move in quiet hospital environments?
Yes, it features 4 steerable solid rubber wheels with special permanently lubricated roller bearings that ensure absolutely noiseless movement.
What safety features are included for body transport?
The trolley includes an EMERGENCY OFF switch, a holding device to secure the body tray or coffin, and an anti-collision buffer at the front end.
What are the power requirements for the hydraulic system?
The system is compatible with both 220V and 110V power supplies (50~60Hz) and includes a maintenance-free drive battery with a rapid charger.
What material is used for the roller track?
The roller track is made of stainless steel with 5 carrying rollers made of corrosion-resistant material and a protective plastic coating.
